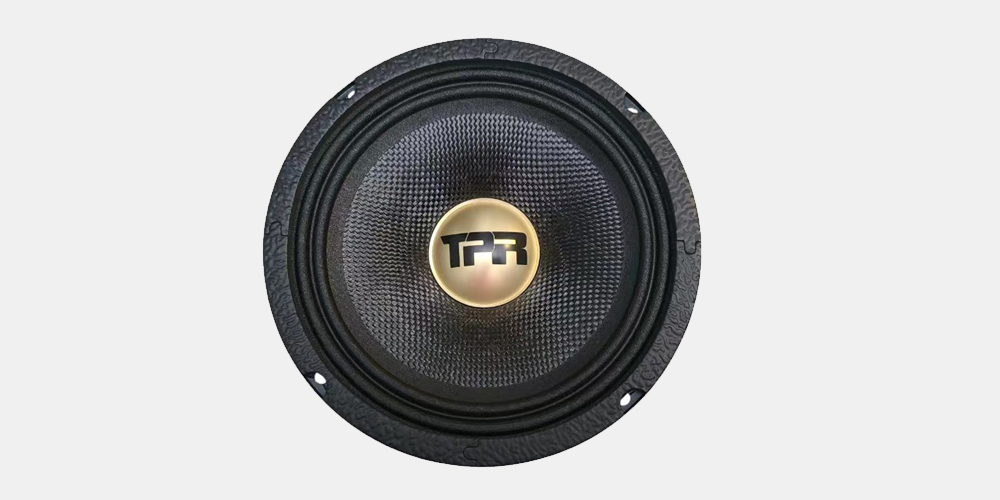

TPR6PA
Classification: OTG
Features
6.5" (16.5cm) bass-midrange driver
38 mm CCA voice coil
Fiber-reinforced paper cone
Long excursion foam surround
Low-resonance steel basket
Paper dustcap
Incl. protective grille
Solder connection
Specifications
Discover the Competition TPR6PA ESQL, a highly effective bass/midrange speaker from TPR. With a diameter of 6.5" (16.5cm), it stands out with its power. The striking speaker has a rigid paper cone and a long excursion CCAW voice coil, which ensures impressive sound quality. With a power handling capacity of up to 250 watts, a frequency response of 50 Hz to 4 kHz and a resonance frequency of 56.8 Hz, this bass-midrange speaker sets new standards in its field. It comes with a protective grille and is therefore ready for immediate use. Special features are its fiber-reinforced paper cone, the low-resonance steel basket and its useful solder connection function.
Design : SPL woofer/midrange speaker
Diameter : 165 mm
Power handling (RMS/max.) : 100 / 250 Watt
Impedance : 4 Ohm
Frequency response : 50 Hz - 4 kHz
Voice coil : 38 mm CCA
Mounting Ø : 145 mm
Resonant frequency (Fs) : 56.8 Hz
